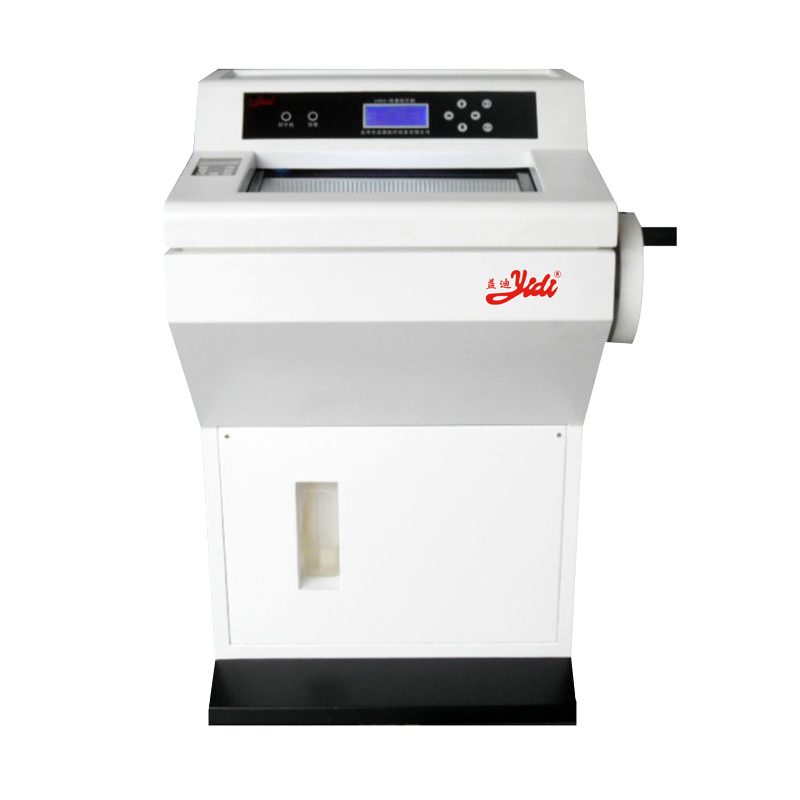

YD-1900

PRODUCT PARAMETERS:

Product features:

1. Intelligent automatic temperature control, intelligent semi-automatic control, slicing function, LCD LCD touch screen dynamic display: specimen travel, slice thickness, fixed function control, temperature control and date, time, temperature, timing switch, instant fumigation, instant defrost and timing defrost, etc.

2. Adopt imported double compressor refrigeration and the structure of using environmentally friendly refrigerant double freezing table, freezing head, freezing box, freezing knife five-point refrigeration. Ensure fast refrigeration speed, good effect, high precision slicing, high cost performance, can completely replace imported products

3. Humanized hibernation function, freezer temperature can be automatically controlled, both to save electricity and extend the life of the compressor, such as slicing, stop hibernation, 30 minutes to reach the slicing temperature.

4. The sample jig is easy to use, the hand wheel can be completely locked in multiple directions

5. Streamline appearance design, beautiful and generous

6. Sample retraction function to prevent sample damage and ensure the integrity of slicing

7. Imported stepper motor driven load table and stepper motor controlled sample travel system

8. UV disinfection function and cold light illumination function

9. Automatic defrost function and splash-proof function

10. Automatic slicing retraction function

11. Automatic retraction function of loading table

12. Anti-roll sweeping function outside the freezer

13. Slicing effect, flat, thin, even, even slicing flat, can be optional wide blade or narrow blade for slicing.

14. into and out of the knife electrically completed, divided into fast into the fast retreat slow into the slow retreat

15. There is a display of the total number and the total thickness of the slice function

Technical parameters:

Freezer temperature: -5℃ ~ -35℃ (±2℃)

Freezing table temperature: -10 ℃ ~ -55 ℃ (± 2 ℃) adjustable

Freezing head temperature: -5℃～-40℃（±2℃）adjustable

Freezing knife temperature: -5℃～-40℃（±2℃）adjustable

Freezing point position: ≥ 12, quick-freezing point: ≥ 1

Slicing thickness range:0-100μm (0-2μm, in 0.5μm increments; 2-10μm, in 1μm increments; 10-20μm in 2μm increments, 20-50μm in 5μm increments, 50-100μm in 10μm increments.)

Trimming range:0-600μm adjustable (0-10μm in 5μm increments, 10-100μm in 10μm increments, 100-200μm in 20μm increments, 200-600μm in 50μm increments)

Maximum sample size: 30*30mm

Maximum moving distance of sample arm up and down:60mm/70mm

Slicing knife angle: 0-15°

Maximum travel distance of sample arm front and back: 20mm/28mm

Slicing minimum index value: 0.5μm, slicing accuracy: ±1um

Sample automatic retraction: 20um, total retraction distance 0-600μm

Sample head XY8 degrees Z360 degrees precise positioning

Motorized sample feeding, speed 0.8mm / s

Freezer can be cooled down to -30℃ within 50 minutes

Frost-free glass door:glass door can be defogged after heating

Size: 600×640×1150mm

Weight: 130kg

Input power: AC220V/110V

Frequency: 50/60HZ

Power:560W
