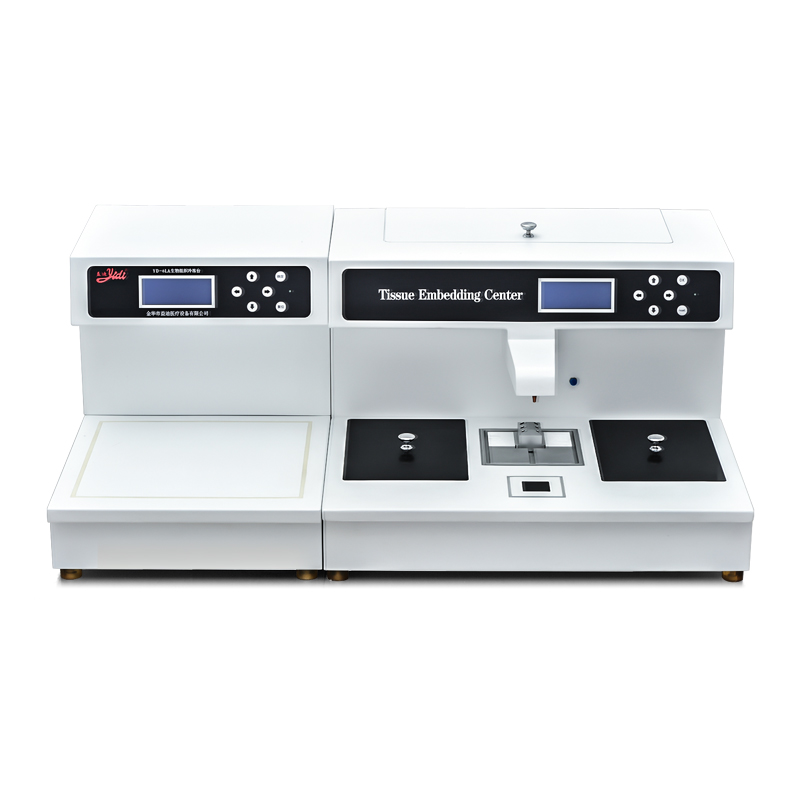

YD-6LA

PRODUCT PARAMETERS:

The valve body is integrated structure, good sealing, flexible opening, no wax leakage, dripping wax phenomenon. Wax temperature and can be controlled automatically, the residual wax on the table is recovered automatically, Chinese (English) menu display, the temperature of melting wax cylinder, holding cylinder, wax nozzle and table can be preset arbitrarily. The whole machine consists of embedding part and freezing part, split design, with memory and automatic recovery function, automatically retain the preset temperature after running. With double filter protection, heating function with multiple protection system, low voltage lighting system, safe and reliable.

Freezing table adopts new type of shrinking machine.

★Large capacity (6 liters) of molten wax cylinder to ensure one-time completion of tissue embedding.

Key operation: there is a memory function, you can set the automatic start and shutdown time on and off, you can set the date and time of the display as well as the temperature and other functions.

★With double filter protection, heating function with multiple protection system, low voltage lighting system, safe and reliable. Touch screen operation.

★Table top with wax block repair surface and heating function with heating, wax block repair function

★ Small cold table design, the temperature can reach a minimum of -20 ℃


Main technical parameters:

Wax cylinder capacity: ≥ 6 liters

Melting wax cylinder temperature preset range: 0℃~99℃

Preset range of temperature of insulated cylinder: 0℃~99℃

Temperature control range of working table: 0℃~99℃

Temperature presetting range of tweezer storage table: 0℃~99℃

Temperature presetting range of flow wax tube: 0℃~99℃

Large working surface can accommodate about 80 embedding boxes

Temperature control accuracy: ±1%

★ Temperature control cold table: room temperature - 20℃ adjustable (can be configured with atomization cold table: room temperature atomization and cold atomization in two ways)

Flow wax working mode: automatic soft contact switch, foot switch control

Time preset: can be set within 0-24 hours arbitrary start and shutdown time

Size of left and right insulation cylinder: 240x155x70mm (C*K*H)X2

Whole machine size: 600×600×380mm

Cold table size 380×600×380mm

Power supply voltage: AC220V/AC110±10%

Power frequency: 50/60±1Hz

Power of embedding machine: 1200w

Cold table power: 200w
