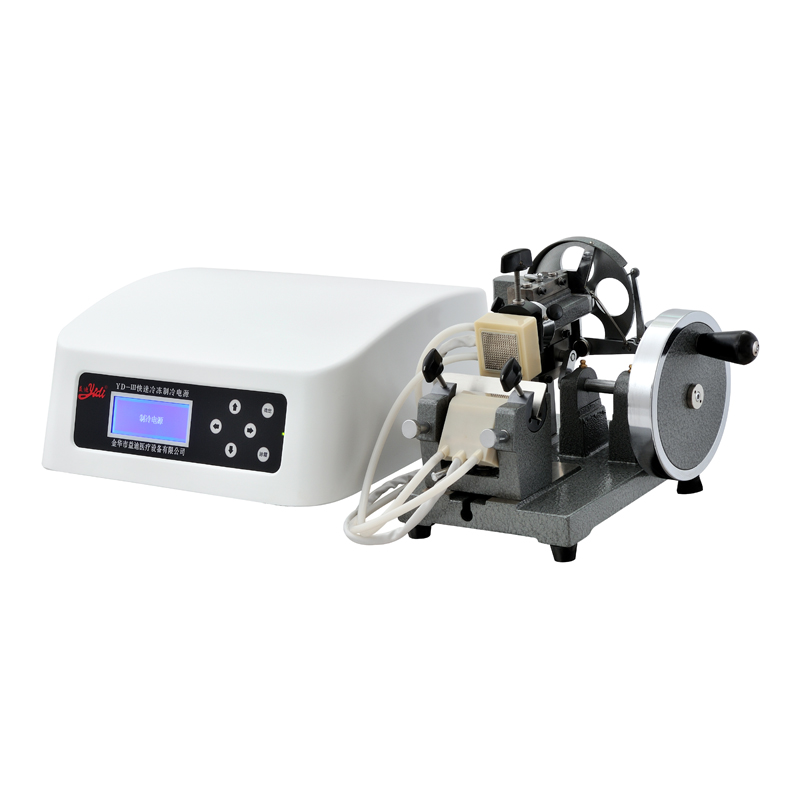

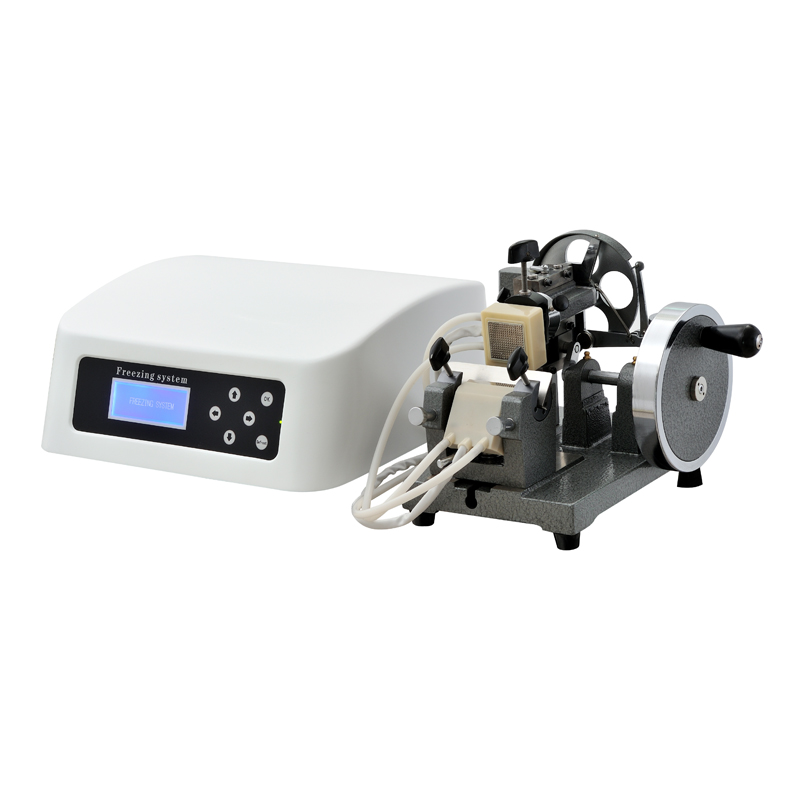

YD-202 III fast freezing thermostat freezing slicer is composed of two parts: YD-202 rotating slicer and freezing system. The freezing system of the machine adopts high-power semiconductor temperature difference cooling principle, advanced nano-material and LCD display, with set temperature, actual temperature, automatic thermostat control, automatic alarm system, memory function, automatic defrost function and quick slice repair function to improve work efficiency. It can quickly interchange chuck and knife holder blades. It can both freeze frozen slices quickly and perform conventional paraffin slices at the same time. It is the ideal product for biological histology and clinical pathology.

Main technical parameters:

Slicing thickness range: 1-25μm adjustable

Minimum index value of slice adjustment: 1μm

Maximum slice section: 35×25mm

Maximum area of freezing table: 40×40mm

Size: 335×350×300

Knife base on the front and back, lateral movement, (easy to slice and repair)

Freezing table maximum temperature difference ≥ 60 ℃ freezing knife maximum temperature difference ≥ 50 ℃

Cold knife and knife back into 45 ° angle slicing, the smaller the angle easier to smear slices.

Cold knife cold table with the screen display preset temperature and real-time temperature respectively.

With memory, power saving function, automatically retain the set temperature after running; automatic constant temperature

Defrosting temperature display, after defrosting automatically restore the cooling working state cooling speed 2-7 minutes to reach the slicing temperature
