YD-335AⅢ

PRODUCT PARAMETERS:

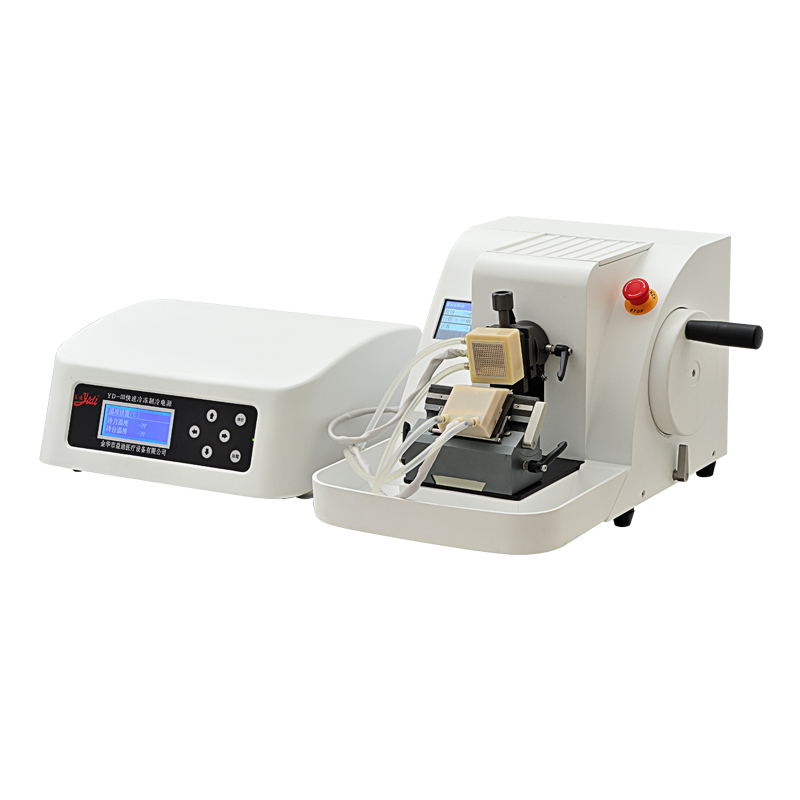

YD-335AⅢ fast thermostatic frozen slicer is composed of two parts: YD-335A tissue slicer and freezing system. The freezing system of this machine adopts high-power semiconductor temperature difference cooling principle, advanced nano material and LCD display touch screen, with setting temperature, actual temperature

automatic thermostat control, automatic alarm system, memory function, automatic retraction and automatic defrosting function, automatic slice counting function, quick slice repair function, and

improve work efficiency. The handwheel can be locked at any position, and it can be used to freeze frozen slices quickly, and at the same time, it can be used for conventional paraffin slices. It is ideal for biological tissue

It is an ideal product for biological histology and clinical pathology.

★The wax block holder and embedding box holder can be interchanged quickly in 5 seconds with bare hands, making it more convenient and fast for the operator to slice.

★Slice trimming and slicing are all stepping motors, with automatic stop function after the motor is fed.

★The knife frame adopts special technology processing, no staining and no rolling of slices when slicing.

★Sample clip can be fixed with 360° arbitrary rotation, which is convenient for different slicing requirements.


Main technical parameters:

Slicing thickness: 0.25-100μm adjustable

Slicing thickness setting range.

0.25-0.5μm in 0.25μm increments; 0.5-2μm in 0.5μm increments, 2-10μm in 1μm increments.

10-20μm in 2μm increments, 20-50μm in 5μm increments, and 50-100μm in 10μm increments.

Trimming thickness range: 1-600μm

Maximum horizontal shift of sample: 20/28mm

Maximum vertical shift of sample: 60mm/70mm

★Sample auto feed, auto retraction: 12μm

Trimming adjustment minimum index value: 1μm

Minimum index value for slicing adjustment: 0.25μm

Adjustable freezing table maximum area: 40×40mm

Maximum slicing section: 50×70mm

Freezing table maximum freezing knife maximum temperature difference ≥ 50 ℃ temperature difference ≥ 60 ℃

Cold knife and knife back into 45 ° angle slicing, the smaller the angle is easier to smear slices

Cold knife using magnetic adsorption, easy to operate and disassemble.

Slicing accuracy: ± 5% large-capacity waste chip tank cold knife cold table with the screen to display the preset temperature and real-time temperature, respectively

Input power: AC220V/110V frequency 50/60HZ

Overall machine weight: YD-335A: 35kg; YD-III: 8kg power: 300VA

Overall dimension: YD-335A: 300*570*270mm; YD-III: 400*400*160mm

With memory, power saving function, automatically retain the set temperature after running; automatic constant temperature

Defrosting temperature display, automatic return to cooling working state after defrosting cooling speed 2-7 minutes to reach the slicing temperature.
