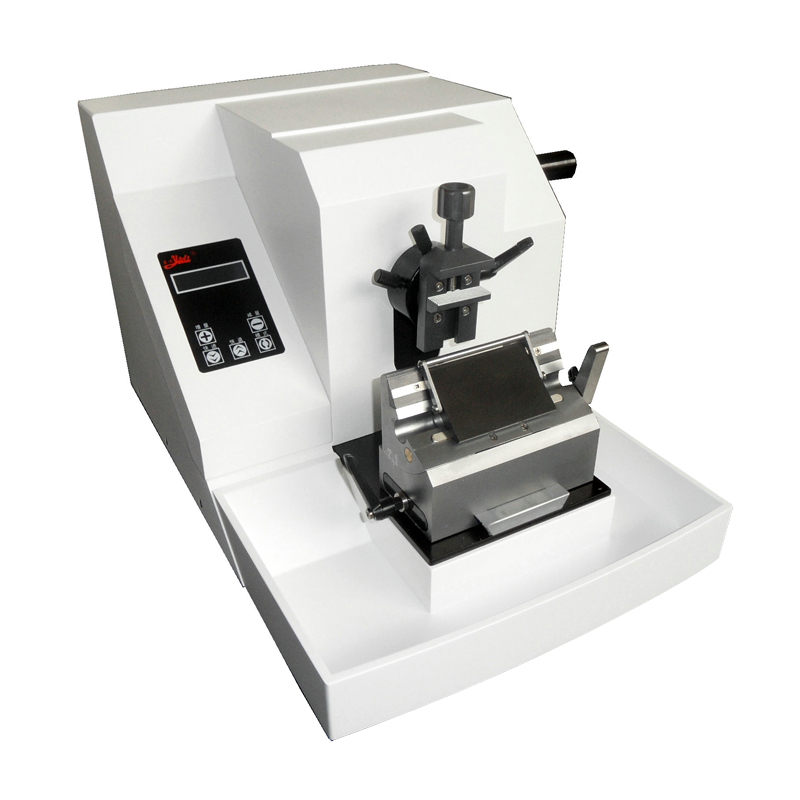

YD-335B

PRODUCT PARAMETERS:

YD-335B hard tissue slicer is a new product launched by our company after YD-202 and YD-1508 series. This slicer brings together the essence of our company's technology, adopts the international advanced design concept, more ergonomic design, and the parts are mainly imported: stepping motor feeding system; high precision cross ball guide; circulating ball screw and other precision parts make the slicing precision higher. The slicer is a model of current advanced technology, a perfect combination of electronics and machinery, and another new development direction of tissue slicing science.


Functional features:

★Adopting international advanced imported stepper motor drive, high slicing precision, smooth and quiet operation.

LCD Chinese and English menus control slice thickness, trim thickness, slice count and fast forward, fast backward and conversion functions.

★Unique sample retraction function avoids the damage caused by the reverse rubbing of specimen tissue and slicing knife, which makes the high quality slices more smoothly, while extending the service life of the blade.

★The hand wheel can be locked at any position, making slicing work more safe and convenient.

The large-capacity waste chip tank is easy to disassemble, making the slicing work clean and hygienic.

With safe alarm system.

★The blade holder is processed with special technology, so that the slices are not stained or rolled.

★Specialized hard tissue slicing (such as: plastic, fiber, polymer, bone, plant and hair strands, etc.)

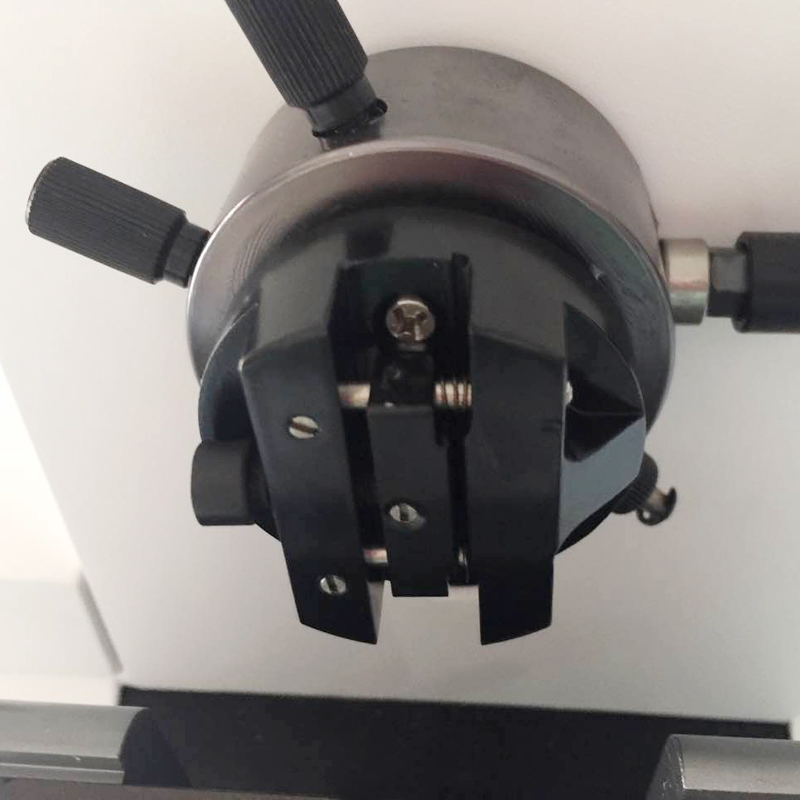

★Sample clip can be fixed with 360° arbitrary rotation to facilitate different slicing requirements

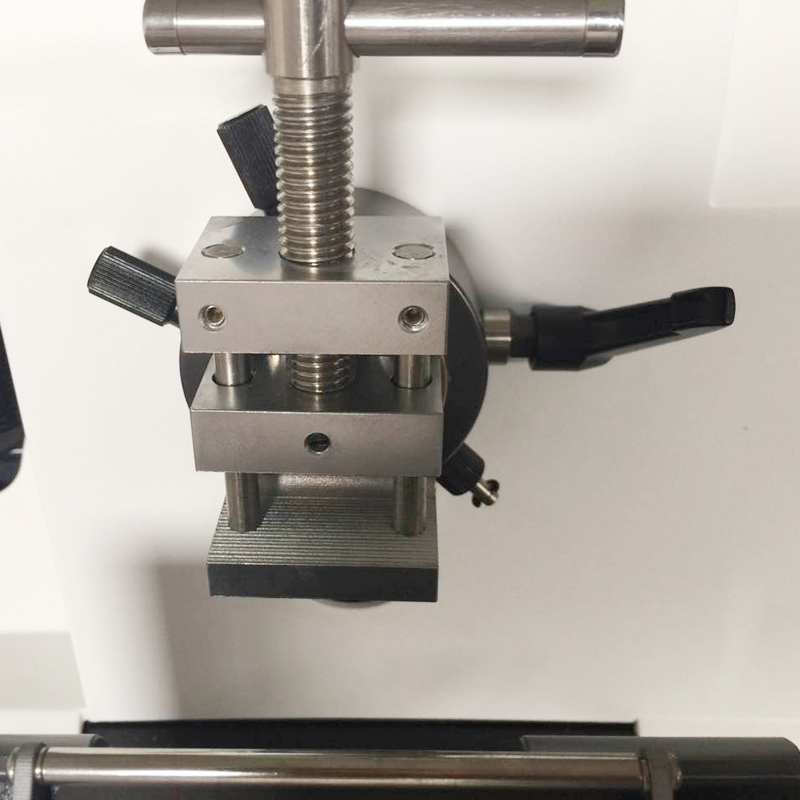

★According to customer demand for personalized customization of the required clamps and knife holders

★Slice repairing and slicing are stepping motor, the motor has automatic stop function after feeding.


Main technical parameters:

Positioning system: with 0 bit indication

Slicing thickness setting range.

0.5-100μm adjustable

0.5-1μm, in 0.5μm increments.

1-10μm in 1um increments.

10-20μm in 2μm increments.

20-50μm in 5μm increments.

50-100μm in 10μm increments.

Trim thickness setting range.

1-600μm adjustable

1-10μm in 1um increments.

10-20μm in 2um increments.

20-100μm in 10um increments.

100-600μm in 50um increments.

Maximum horizontal displacement of the sample: 20/28mm can be customized

Maximum vertical displacement of sample: 60/70mm customizable

Automatic sample feed, automatic retraction: 12μm

Slicing adjustment minimum index value: 0.5μm

Trimming adjustment minimum index value: 1μm

Slicing accuracy: ±5%

Maximum slicing section: 50×70mm

Can customize the whole set of chuck and tool holder

Input power: AC220V/110V

Frequency: 50/60HZ

Weight of the whole machine: 35kg

Overall machine size: 520×450×300 (mm)
