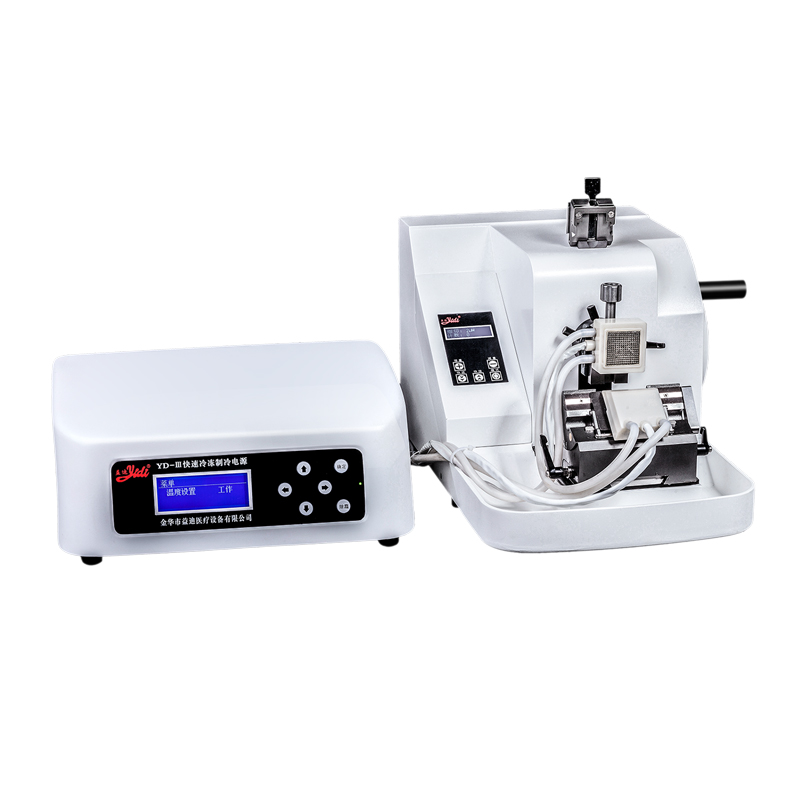

YD-335Ⅲ fast thermostatic frozen slicer is composed of two parts: YD-335 tissue slicer and freezing system. The machine's

Freezing system adopts high-power semiconductor temperature difference cooling principle, advanced nano-material and LCD display, with set temperature, actual temperature, automatic thermostat control, automatic alarm system, memory function, automatic retraction and automatic defrost function, automatic slice counting function, and quick slice trimming function to improve work efficiency. The handwheel can be locked at any position, and the sample holders can be interchanged quickly. It can both freeze quickly for frozen sectioning and conventional paraffin sectioning at the same time. It is the ideal product for biological histology and clinical pathology.

★Large capacity scrap tank.

★Slice trimming and slicing are all stepping motors, with automatic stop function after motor feeding.

★The knife holder is processed by special technology, no staining and no rolling of slices when slicing.

★Sample clip can be fixed with 360° arbitrary rotation, which is convenient for different slicing requirements.

Main technical parameters:

Slicing thickness: 0.5-100μm adjustable

Slicing thickness setting range.

0.5-1μm, in 0.5μm increments, 1-10μm in 1μm increments

10-20μm in 2μm increments, 20-50μm in 5μm increments, 50-100μm in 10μm increments.

Trimming thickness range: 1-600μm adjustable

Maximum horizontal shift of sample: 20/28mm can be customized

Maximum vertical translation of the sample:60/70mm can be customized

★Automatic retraction: 12μm

Trimming adjustment minimum index value: 1μm

Slicing adjustment minimum index value: 0.5μm

Slicing accuracy: ±5%

Maximum area of freezing table: 40×40mm

Maximum slicing section: 50×70mm

Maximum temperature difference of freezing table≥60℃

Maximum temperature difference of freezing knife≥50℃

The cold knife and the back of the knife into 45 ° angle slicing, the smaller the angle is easier to smear slices

The cold knife adopts magnetic adsorption, easy to operate and dismantle.

Cold knife cold table with screen display preset temperature and real-time temperature respectively

Input power: AC220V/110V

Power: 300VA


Machine weight: YD-335: 35kg; YD-III: 8kg

Dimension: YD-335: 300*570*270mm; YD-III: 400*400*160mm

With memory and power-saving function, automatically retaining the set temperature after running; automatic constant temperature

Large capacity debris tank

Defrosting temperature display, automatically resume cooling working state after defrosting cooling speed 2-7 minutes to reach the slicing temperature.
