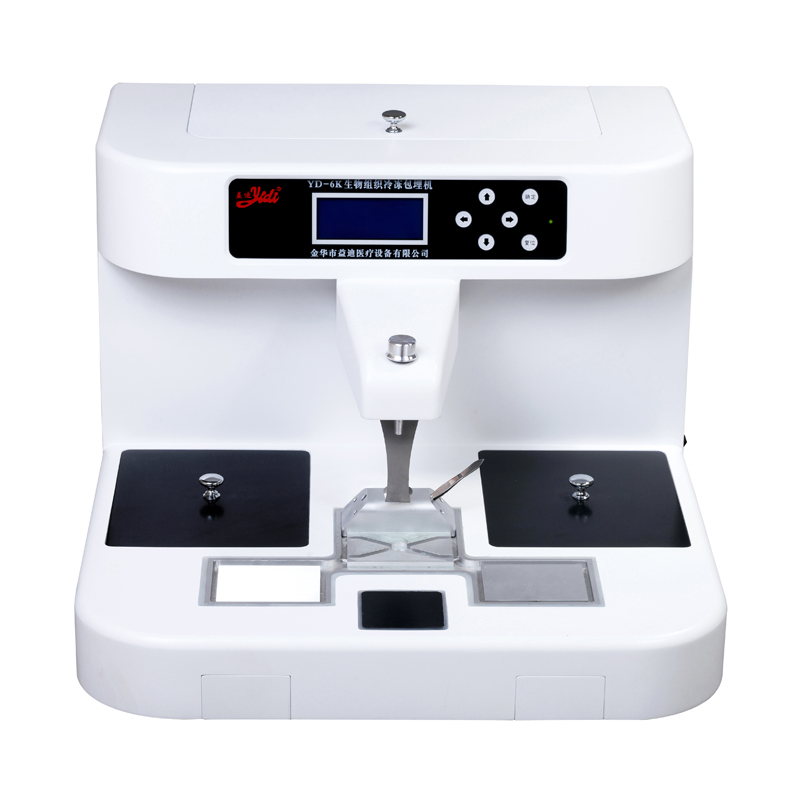

YD-6K Mainframe


The valve body is integrated structure, good sealing, flexible opening, no wax leakage and dripping wax phenomenon. The wax temperature and flow rate can be controlled automatically, the residual wax on the table can be recovered automatically, the Chinese (English) menu display, the temperature of melting wax cylinder, holding cylinder, wax nozzle and table can be preset arbitrarily. The whole machine consists of embedding part and freezing part, split design, with memory and automatic recovery function, and preset temperature is automatically retained after running. With double filter protection, heating function with multiple protection system, low voltage lighting system, safe and reliable.

★ freezing table with a new compressor, the compressor has a delayed protection function, stable performance, long service life has a super cooling mode and temperature control mode, high precision temperature control; in the temperature control mode, adjust the appropriate temperature to achieve the desired freezing effect.

★Large capacity (6 liters) of molten wax cylinder to ensure one-time completion of tissue embedding

Touch screen operation: with memory function, automatic on and off time can be set for on and off time, and the date and time of display as well as temperature can be set.

With double filter protection, heating function with multiple protection system, low voltage lighting system, safe and reliable.

The table is equipped with wax block repair surface and heating function with heating, wax block repair function; bilateral multi-hole storage tweezer table design, can place the size of tweezers.

★ Semiconductor small cold table design, the temperature can be as low as -20 ℃; cold spot area: 50x50mm.

Flow wax speed adjustable. (Can be equipped with a gooseneck magnifying glass with electric light source to facilitate the positioning of tissue embedding)

★The pipeline of wax discharge is with heating function, and the wax discharge nozzle is under the wax cylinder to discharge wax from top to bottom without causing blockage of wax. Hand rest area with anti-scalding device, intuitive operation panel, safe and comfortable operation. Configuration of paraffin wax collection drawer: waste wax collection will not cause blockage.

Main technical parameters:

Wax cylinder capacity: ≥ 6 liters

temperature presetting range of melting wax cylinder: 0℃~99℃

Preset range of temperature of insulated cylinder: 0℃~99℃

Temperature presetting range of working table: 0℃~99℃

Preset range of temperature of storage table: 0℃~99℃

Temperature presetting range of flow wax tube: 0℃~99℃

Wax scraper to scrape off excess waste wax, size: 115x100

Size of left and right holding cylinders: 70x220x175mm

Size of double working table: 135x120mm, 115x100mm

Temperature control accuracy: ±1%

Flowing wax working mode: manual switch flowing wax speed adjustable, foot switch control two ways

Time preset: can be set within 0-24 hours arbitrary power on and off time

Size: 600×660×420mm

Left and right insulation cylinder size: 70X220X175mm
